Обзор и тест Trigkey S3: Производительность уровня Core i3 по цене Celeron

Трёхтысячный Ryzen в 2023 году. Этот неттоп под торговой маркой Trigkey обходится без заторможеннных Atom и Celeron, хотя оценён лишь в $280. Выбранный разработчиками процессор архитектуры AMD Zen+ не отличается свежестью, зато достаточно шустр и дружелюбен ко многозадачности.

Под торговой маркой Trigkey выходят доступные по цене мини-компьютеры с процессорами, которым, как правило, исполнилась уже пара-тройка лет. Вот и S3 использует Ryzen 5 3550H, сравнительно шустрый ЦП трёхлетней давности. Просят за него порядка $280.

В списке конкурентов этого компактного компьютера числятся другие недорогие неттопы, включая BMax B5 Pro, Beelink U59, Chuwi LarkBox.

Trigkey S3
Процессор
AMD Ryzen 5 3550H 4 x 2.1 - 3.7 GHz, 13 W PL2 / Short Burst, 11 W PL1 / Sustained, Zen+
Графический адаптер

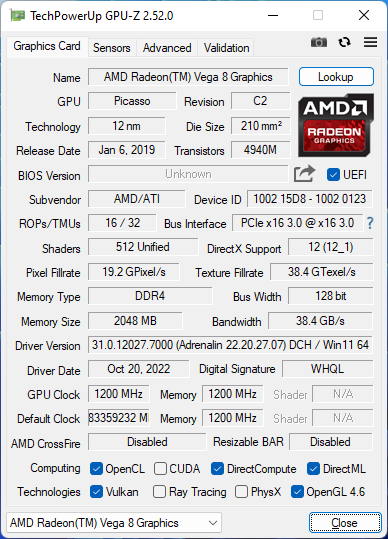

AMD Radeon RX Vega 8 (Ryzen 2000/3000) - 2048 Мбайт VRAM, Память: 1200 МГц, DDR4, 22.20.27.07
ОЗУ
16 Гбайт

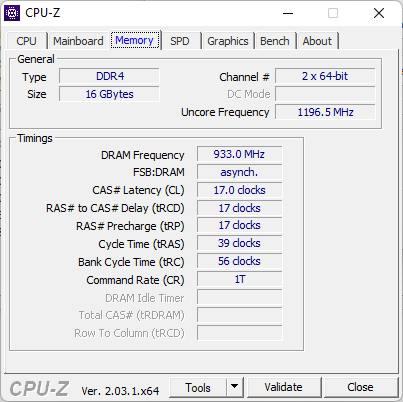

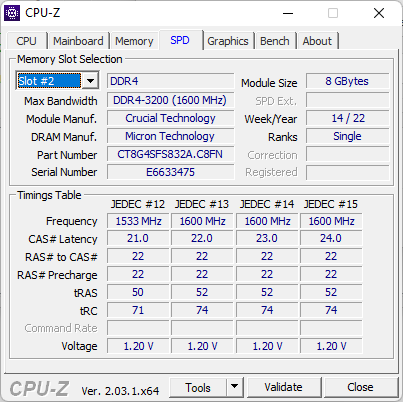

, Crucial DDR4-3200, 17-17-17-39, два канала, 2x SO-DIMM
Материнская плата

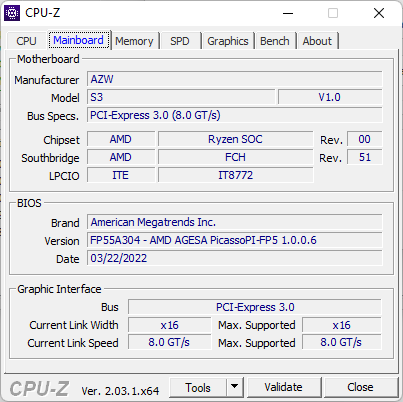

AMD Promontory/Bixby FCH
Хранение данных
Kingston NV1 SNVS/500GCN, 500 Гбайт
Звуковая плата
AMD Zen - Audio Processor - HD Audio Controller
Интерфейсы
5 USB 3.0 / 3.1 Gen 1, 1 HDMI, Аудиоразъёмы: 3.5 мм
Коммуникации
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Габариты
толщина х ширина х глубина (мм): 40.7 x 126 x 112.7
Операционная система
Microsoft Windows 11 Pro
Дополнительно
12 мес. гарантии в Европе
Вес
419 г, адаптер питания: 218 г
Стоимость
280 USD
Внимание: Разные образцы одной и той же модели часто используют неодинаковые компоненты! (Матрица AUO вместо BOE, память Hynix вместо Samsung, накопитель SATA вместо PCIe, ...)



Группа сравнения

Рейтинг
Дата
Модель
Вес
Height
Размер
Разрешение
Стоимость от
01/2023
Trigkey S3
R5 3550H, Vega 8
419 г40.7 ммx
Intel NUC Pro Chassis_i7_1265U
i7-1265U, Iris Xe G7 96EUs
35 ммx
04/2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 г37 ммx
Beelink SEi12 Core i5-1235U
i5-1235U, Iris Xe G7 80EUs
465 г42 ммx
Beelink SEi11 Pro
i5-11320H, Iris Xe G7 96EUs
440 г40 ммx
10/2022
Beelink SER Pro Ryzen 5 5600H
R5 5600H, Vega 7
498 г42 ммx

Дизайн и особенности

Пластиковый корпус этого неттопа очень напоминает нам Beelink SEi8, хотя с незначительными отличиями. Верх сделан матовым, плоским - не выпирает относительно боковых краёв и не утоплен вглубь. Простая, аккуратная внешность. Набор портов и возможности обслуживания совершенно одинаковы с SEi8.

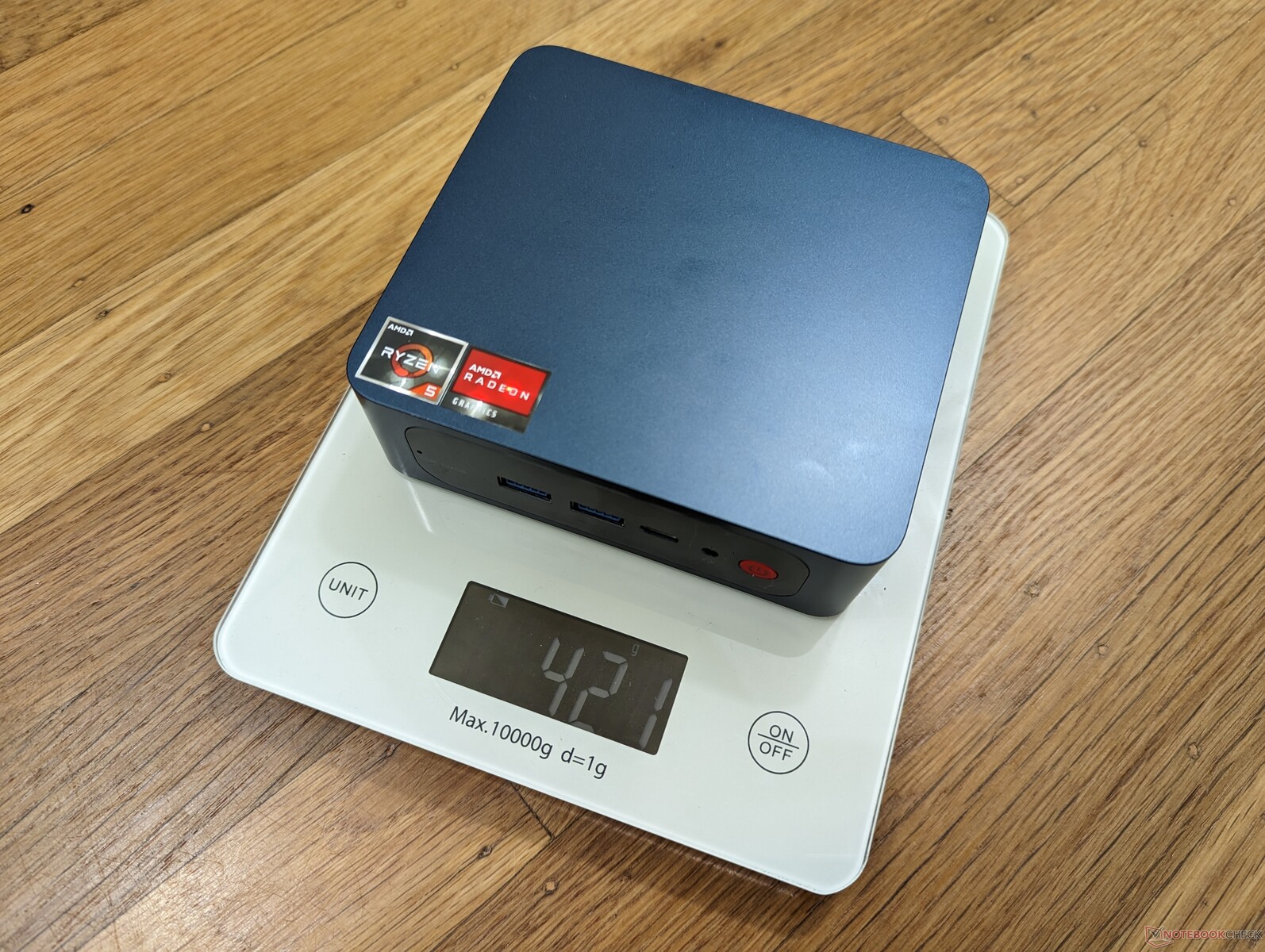

421 грамм, RAM и SSD входят в цифру. Другие мини-компьютеры обычно весят больше
421 грамм, RAM и SSD входят в цифру. Другие мини-компьютеры обычно весят больше

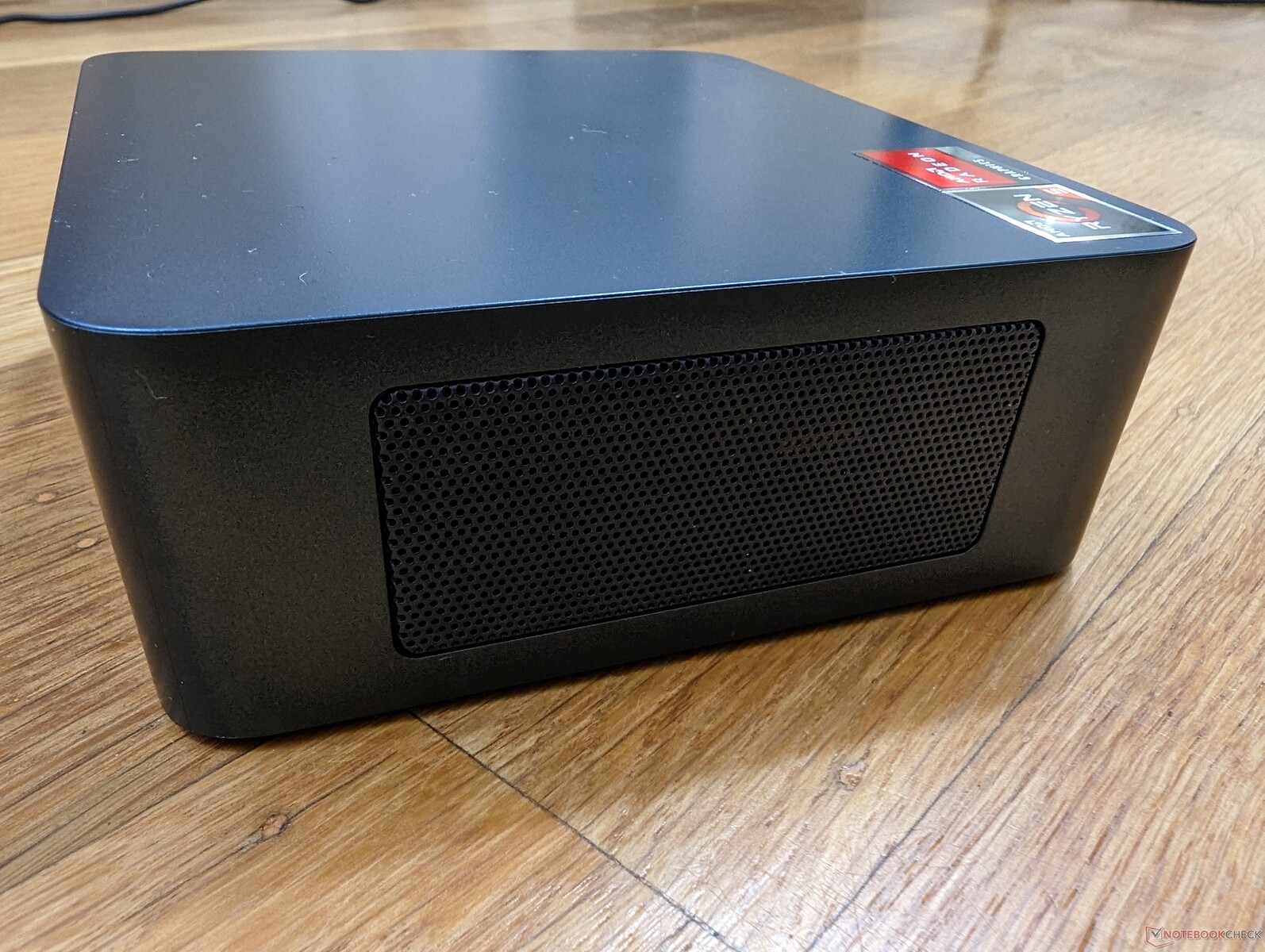

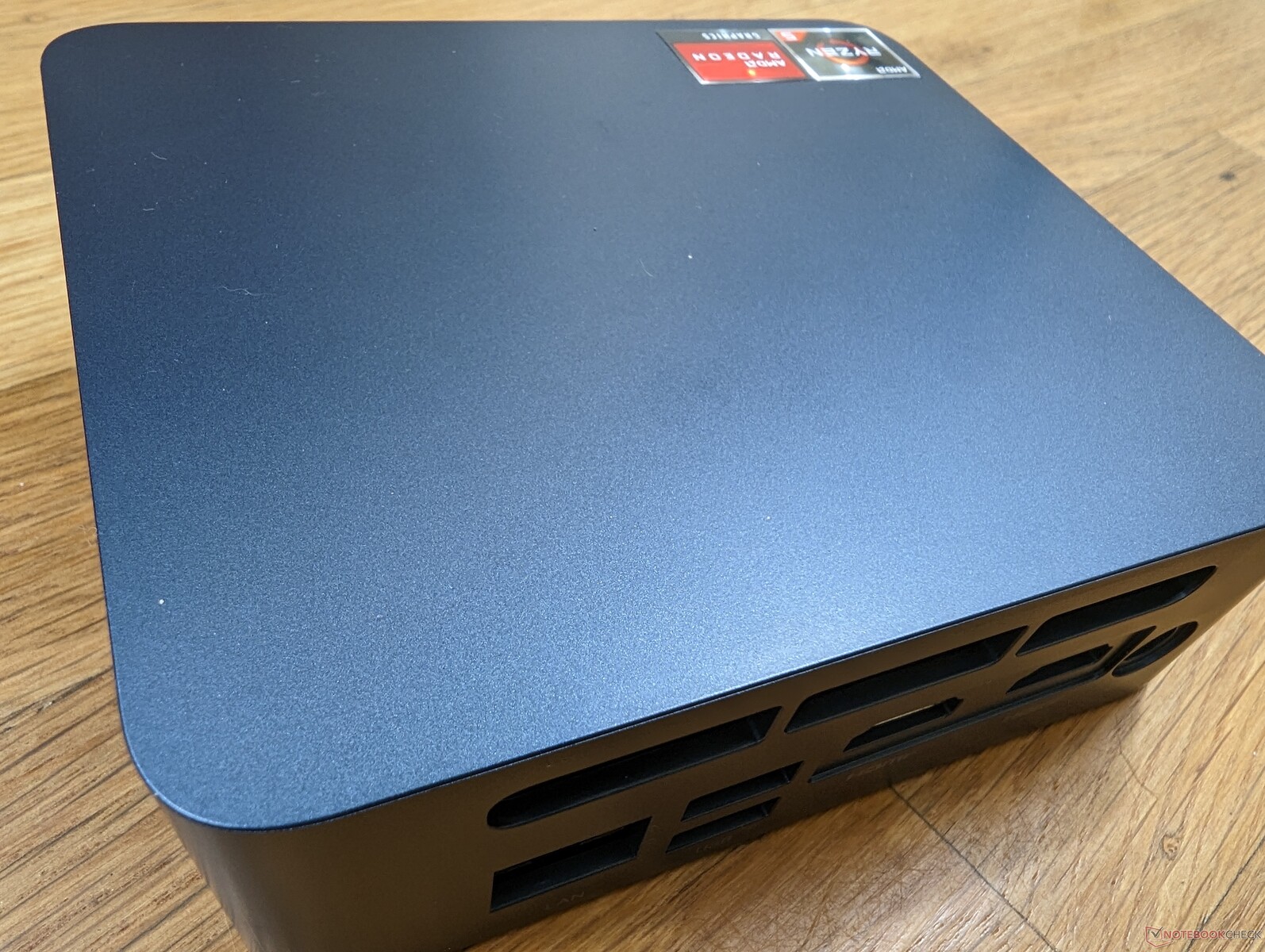

Ровный верх из матового пластика. Металл - только в вентиляционных решётках
Ровный верх из матового пластика. Металл - только в вентиляционных решётках

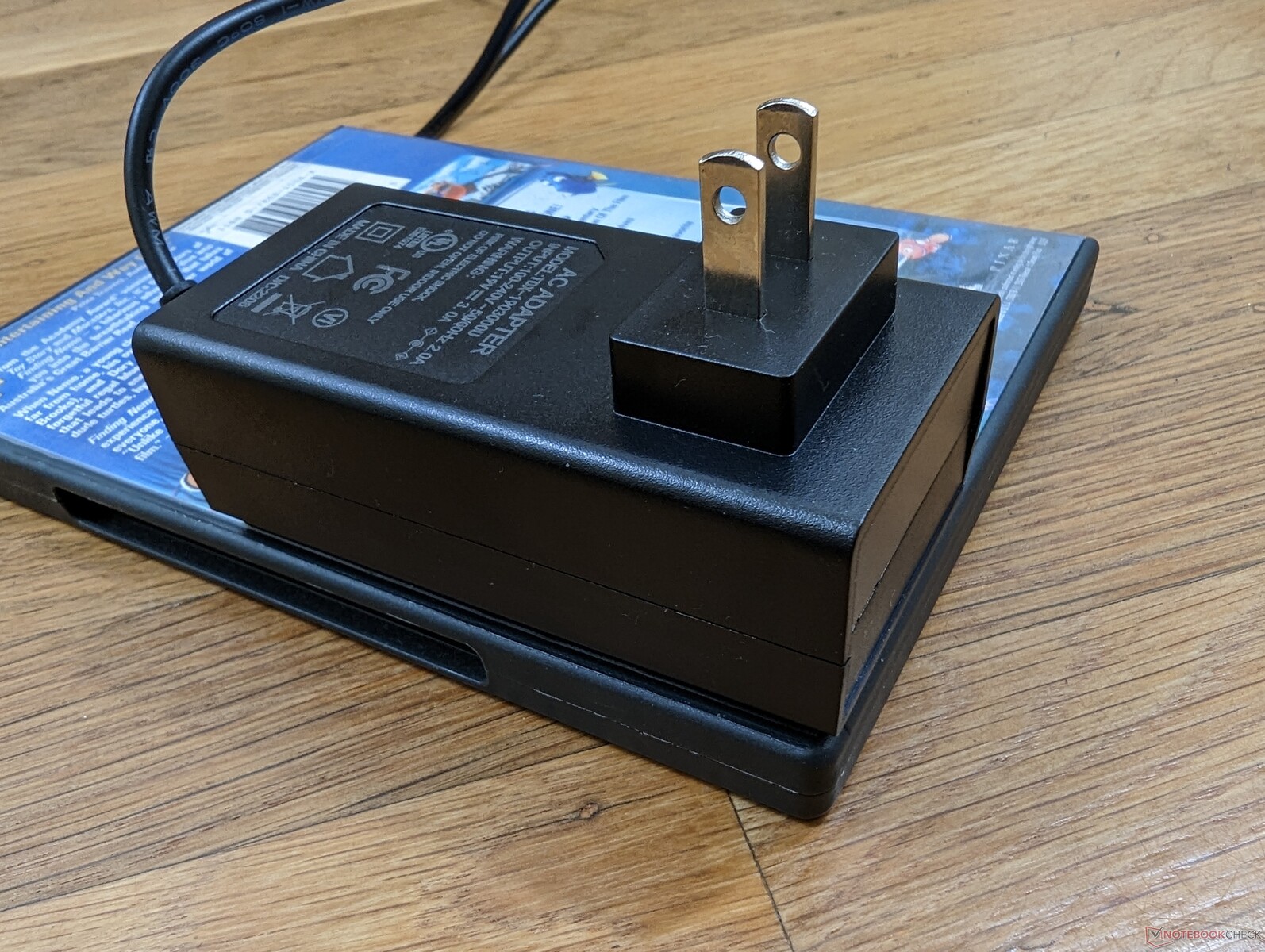

Комплектный адаптер питания даёт 57 ватт
Комплектный адаптер питания даёт 57 ватт

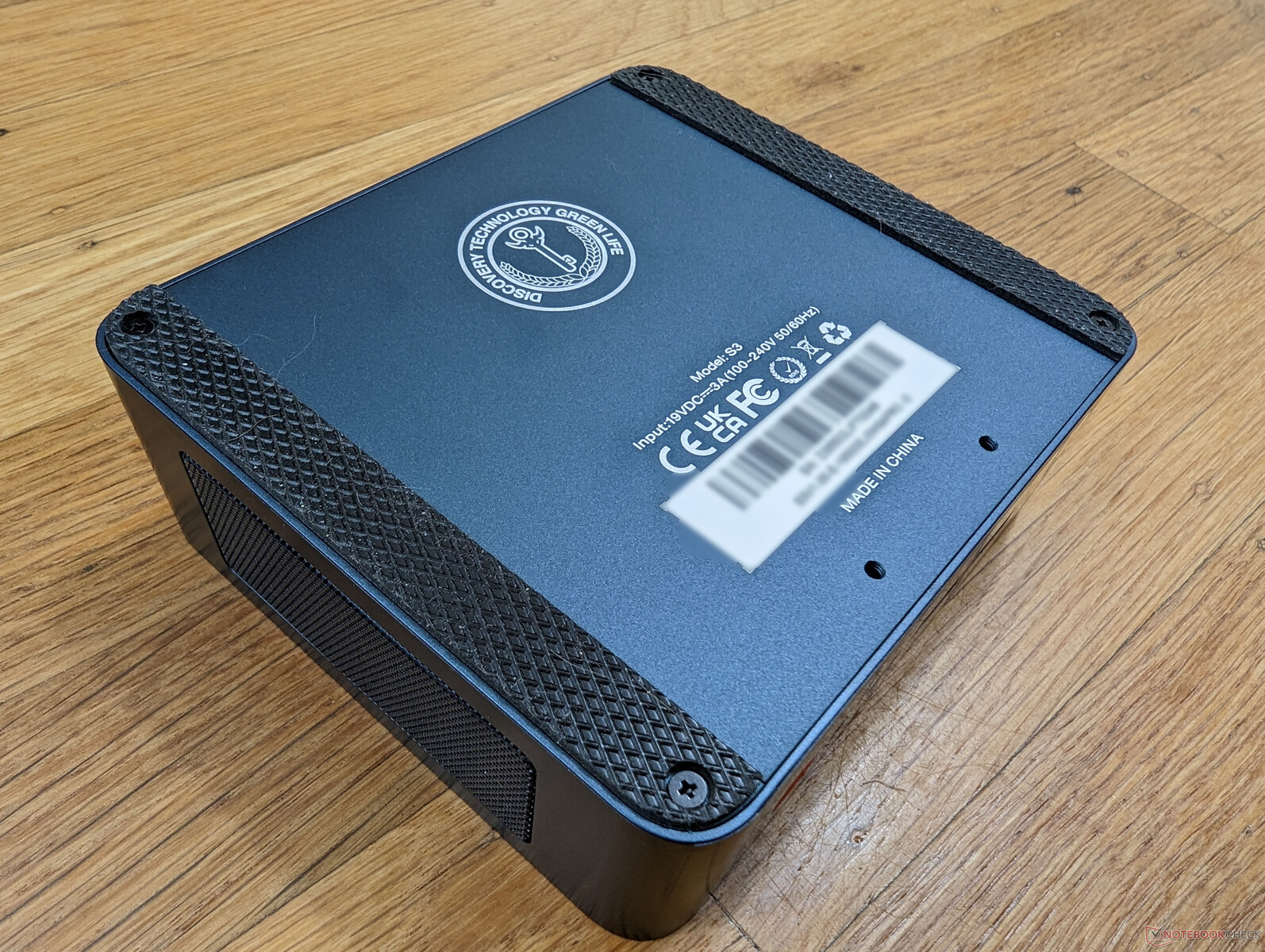

На дне есть резиновые подставки-полосы и прорези под крепление VESA
На дне есть резиновые подставки-полосы и прорези под крепление VESA

Сравнение размера и веса

126 mm 113 mm 42 mm 465 g126 mm 113 mm 42 mm 498 g126 mm 112.7 mm 40.7 mm 419 g126 mm 113 mm 40 mm 440 g117 mm 112 mm 37 mm 511 g117 mm 112 mm 37 mm 504 g210 mm 148 mm 1 mm 2.9 g

Порты и коммуникации

Портов полно, но, стоит отметить, единственный USB-C способен лишь на передачу данных и передачу тока. Портативный монитор, подключённый к этому гнезду, не заработал.

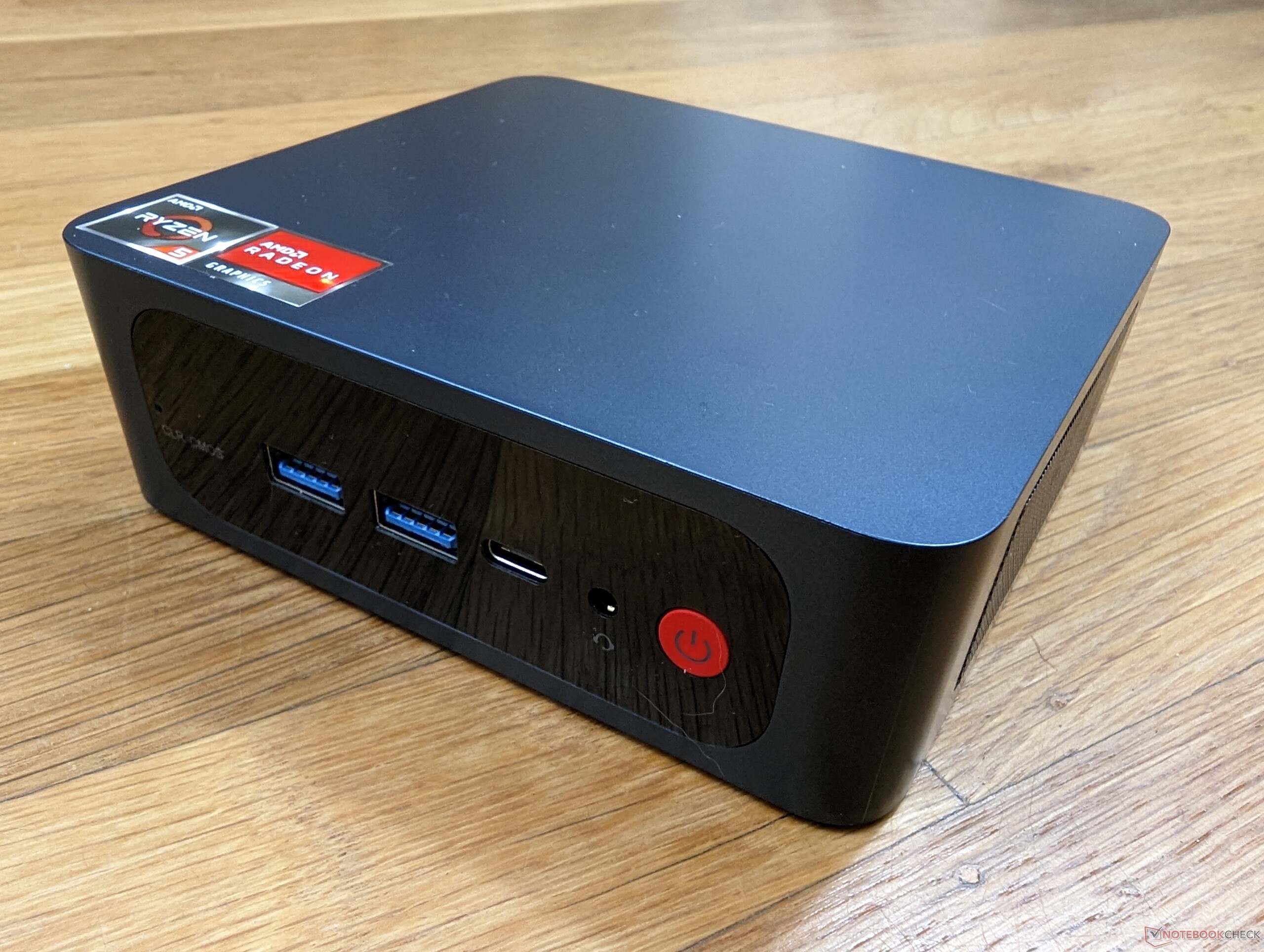

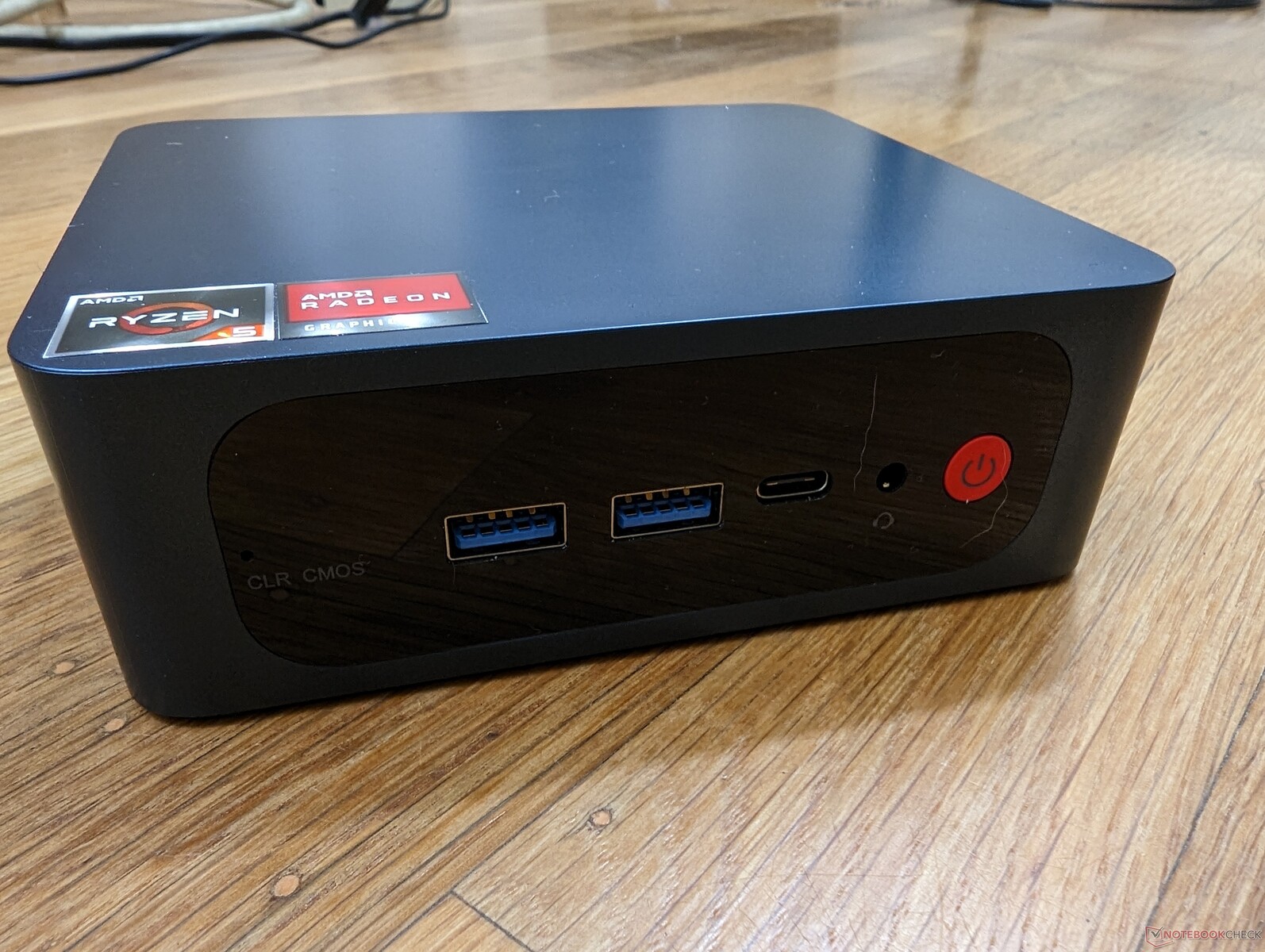

Спереди: Сброс настроек BIOS/UEFI, 2x USB 3.0, USB-C, аудио 3.5 мм, кнопка включения
Спереди: Сброс настроек BIOS/UEFI, 2x USB 3.0, USB-C, аудио 3.5 мм, кнопка включения

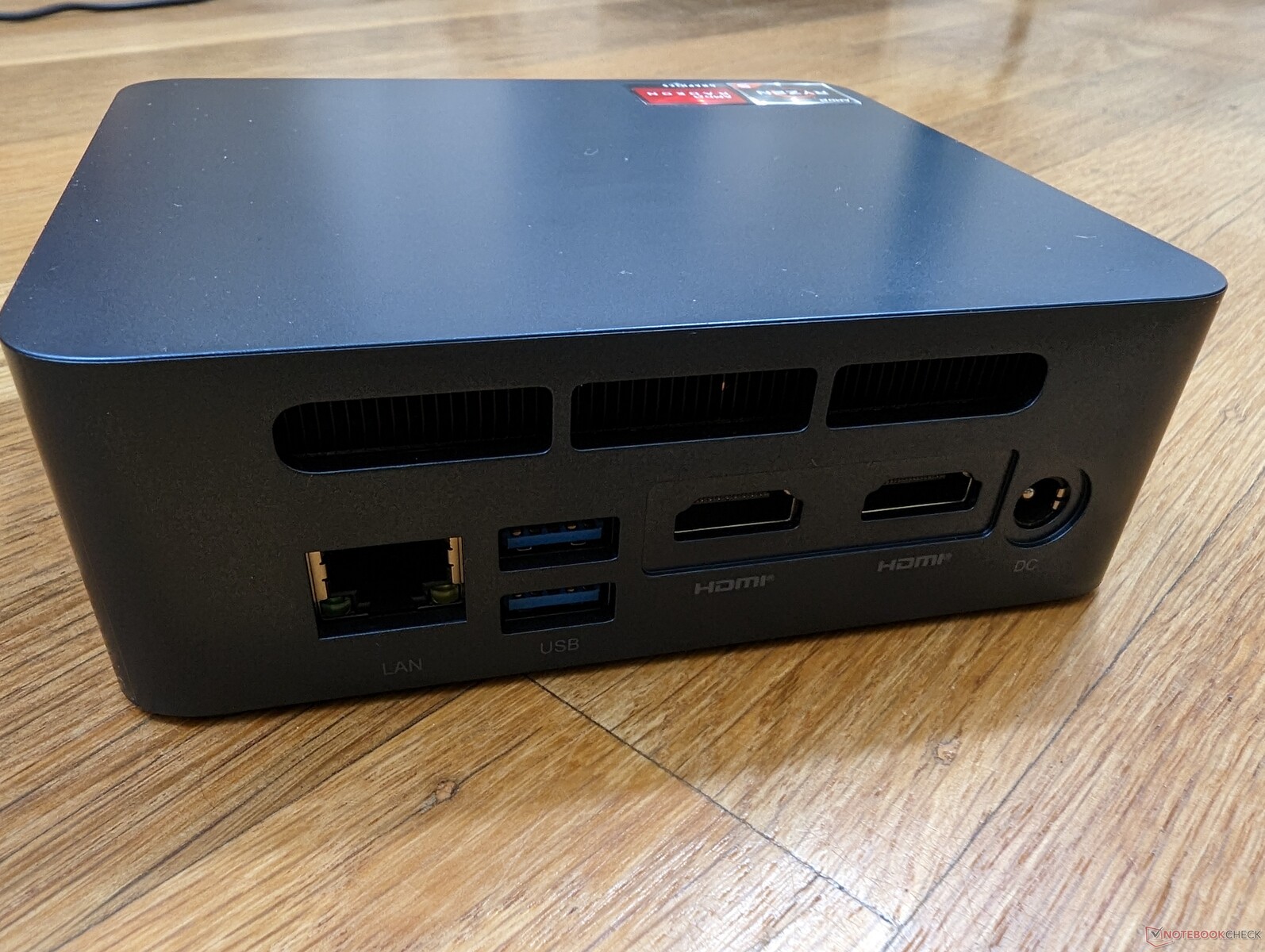

Сзади: RJ-45 Ethernet 10/100/1000, 2x USB, 2x HDMI (4K60), вход питания
Сзади: RJ-45 Ethernet 10/100/1000, 2x USB, 2x HDMI (4K60), вход питания

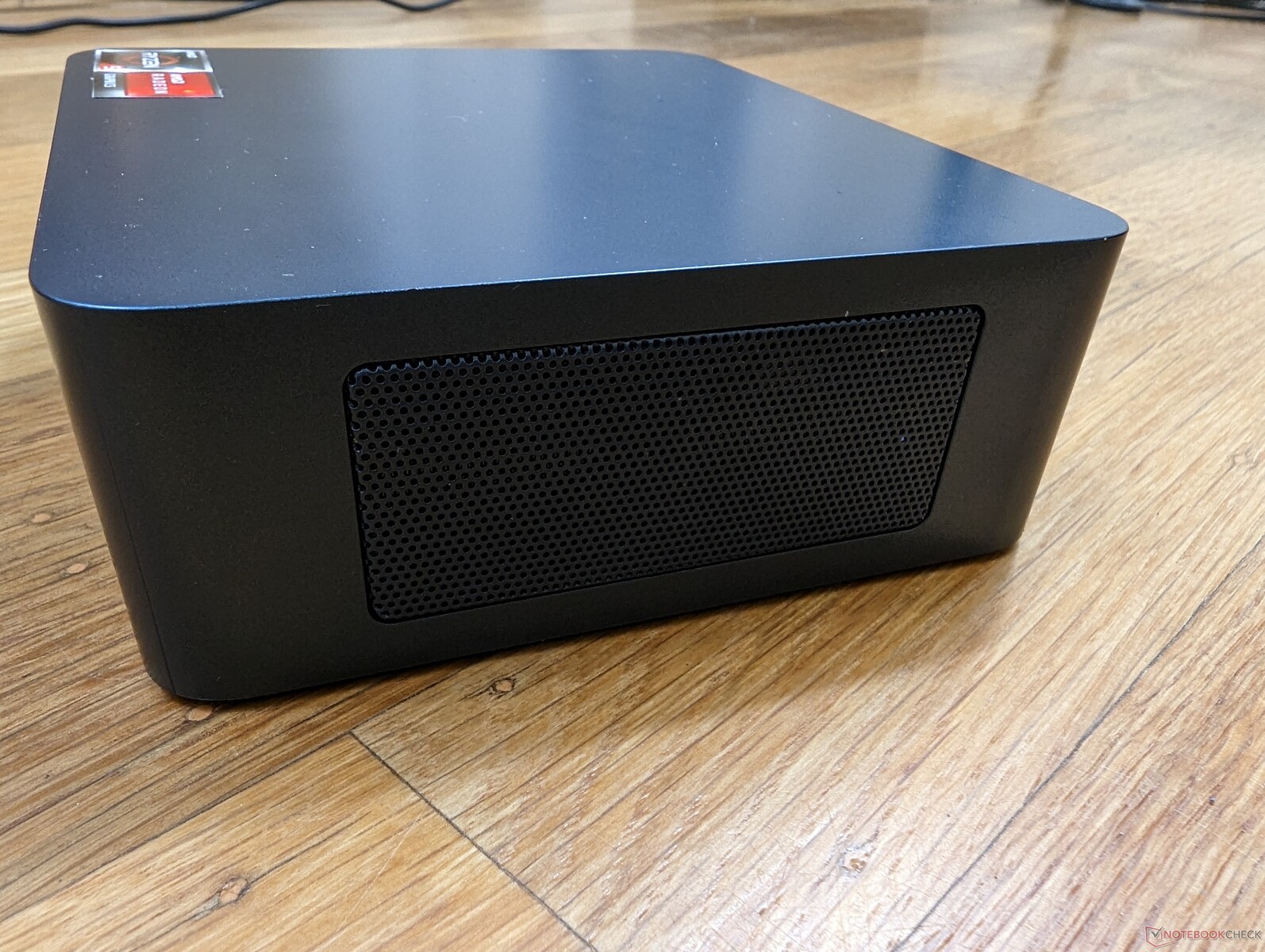

Справа: Портов нет
Справа: Портов нет
Слева: Портов нет
Слева: Портов нет

Связь

Одноантенный адаптер Intel 3165 обеспечивает поддержку Wi-Fi 5 и скорости передачи данных, раз в пять отстающие от более современных карт беспроводной сети (совместимых с Wi-Fi 6 или Wi-Fi 6E). Так, или иначе, беспроводная сеть работает стабильно и пропускной способности более, чем достаточно для просмотра видео по Сети и чтения сайтов.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U
Intel Wi-Fi 6E AX211
1713 (1694min - 1728max) MBit/s ∼100%
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
850 (802min - 876max) MBit/s ∼50%
Beelink SEi11 Pro
MediaTek RZ608
743 (453min - 793max) MBit/s ∼43%
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1384 (1200min - 1495max) MBit/s ∼100% +333%
Trigkey S3
Intel Dual Band Wireless-AC 3165
320 (269min - 345max) MBit/s ∼23%
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1491 (1413min - 1572max) MBit/s ∼100% +469%
Trigkey S3
Intel Dual Band Wireless-AC 3165
262 (233min - 292max) MBit/s ∼18%
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U
Intel Wi-Fi 6E AX211
1093 (570min - 1168max) MBit/s ∼100%
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
750 (374min - 799max) MBit/s ∼69%
Beelink SEi11 Pro
MediaTek RZ608
722 (447min - 789max) MBit/s ∼66%
050100150200250300Tooltip
Trigkey S3; iperf3 receive AXE11000; iperf 3.1.3: Ø319 (269-345)
Trigkey S3; iperf3 transmit AXE11000; iperf 3.1.3: Ø262 (233-292)

Обслуживание

Снять дно корпуса - дело, вроде бы, простое. Только вот винтики здесь сделаны из металла столь мягкого, что привести их в нефункциональное состояние можно быстрее быстрого. Как раз так произошло в нашем случае. Будьте предельно аккуратны с отвёрткой! Для сравнения, винтики в неттопах Intel NUC можно выкрутить голым пальцем, без всякого инструмента.

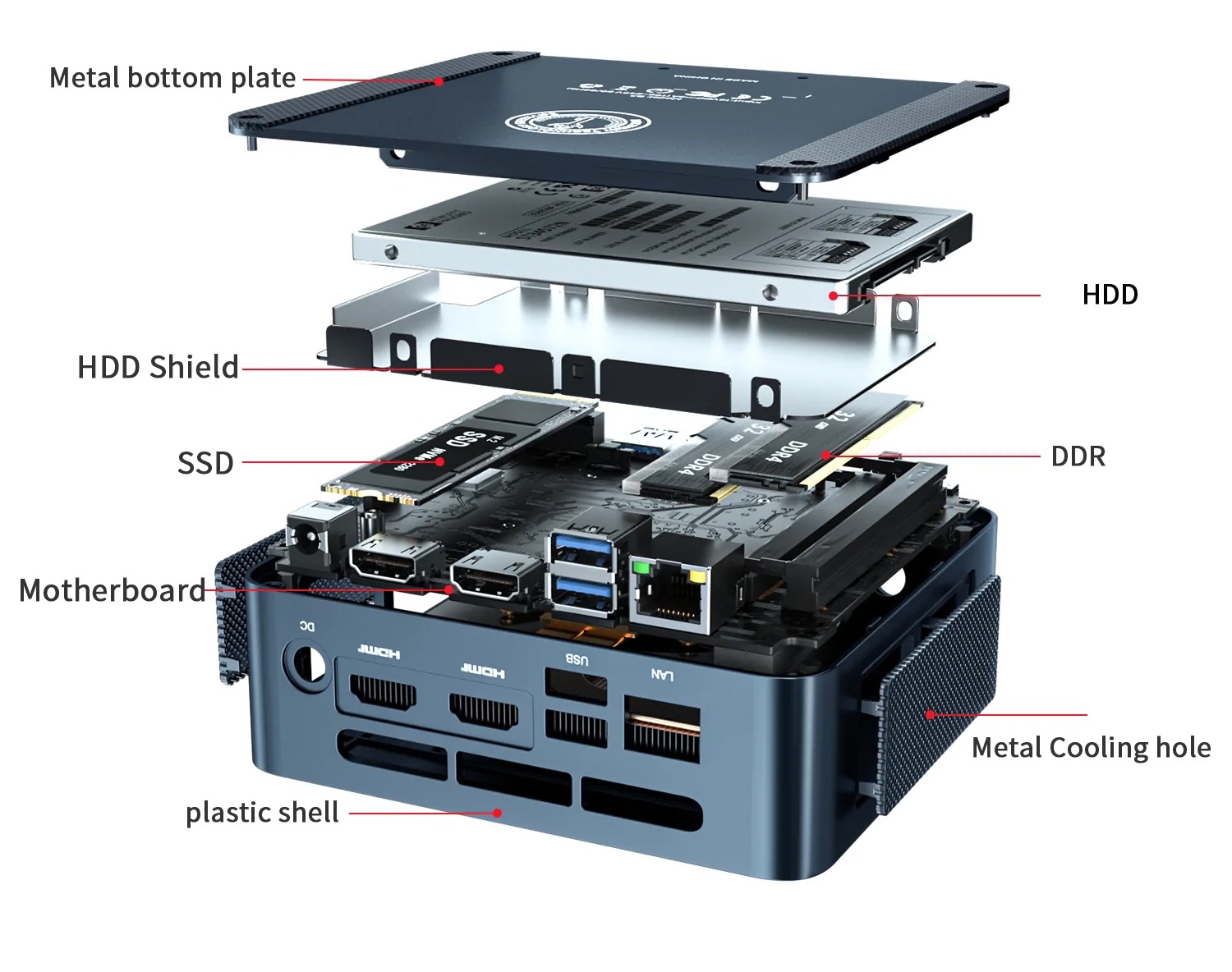

Изображение: Trigkey
Изображение: Trigkey

Комплектация и аксессуары. Гарантия

В коробке мы нашли съёмное крепление VESA, адаптер сетевого питания, руководство и два шнура HDMI. Гарантия длится год. [Разумно предположить, что в случае возникновения проблем товар придётся отправлять обратно в КНР, на что уйдёт время, и, возможно, уйдут деньги.]

Производительность




Прежде, чем проводить тесты на быстродействие, мы выставили профиль максимальной производительности в Windows. Какого-либо "центра управления" от производителя, присутствующего, скажем, во многих игровых ноутбуках, здесь нет.

Процессор

Будучи медленнее актуальных Core i5 или Core i7 класса энергопотребления U, рассматриваемый Ryzen, тем не менее, в разы опережает любой компьютер с Celeron или Atom, а ведь именно последние обычно встречаются в недорогих мини-ПК. Ryzen 5 3550H сравним с современными Intel Core i3, или, скажем, с четырёхъядерным (но уже отметившим с пяток дней рождения) Core i5-8260U. В общем, применённый Ryzen способен зажечь, хотя было бы совсем хорошо, если бы здесь оказался Ryzen 7 4800U. Там встроено больше ядер, и архитектура Zen 2 приносит большой прирост быстродействия на такт относительно Zen Plus.

Зацикленный многопоточный CineBench R15

075150225300375450525600675750825900975105011251200127513501425Tooltip
Trigkey S3 AMD Ryzen 5 3550H: Ø637 (633.41-642.56)
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)
Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)
CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Beelink GTR6
AMD Ryzen 9 6900HX
91.8 pt ∼92%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
90.8 pt ∼91%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
78.7 pt ∼79%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
75.9 pt ∼76%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
72.2 pt ∼72%
Beelink SEi11 Pro
Intel Core i5-11320H
63.8 pt ∼64%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
63.2 pt ∼63%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
61.8 pt ∼62%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
50.3 pt ∼50%
Beelink SER3 -2!
AMD Ryzen 7 3750H
44.2 pt ∼44%
Усредн. модель с AMD Ryzen 5 3550H

43.5 pt ∼44%
Trigkey S3
AMD Ryzen 5 3550H
42.8 pt ∼43%
MSI Cubi 5 10M -8!
Intel Core i3-10110U
37.5 pt ∼38%
Beelink SEi8
Intel Core i3-8109U
35.4 pt ∼35%
BMAX B5 Pro G7H8
Intel Core i5-8260U
35.3 pt ∼35%
Beelink U59 N5105
Intel Celeron N5105
27.6 pt ∼28%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
27.4 pt ∼27%
Chuwi LapBook Plus -6!
Intel Atom x7-E3950
10 pt ∼10%
Chuwi Hi10 Air -12!
Intel Atom x5-Z8350
8.2 pt ∼8%
Cinebench R20 / CPU (Multi Core)
Beelink GTR6
AMD Ryzen 9 6900HX
4619 Points ∼100% +225%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
4578 Points ∼99% +222%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
3234 Points ∼70% +128%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
3111 Points ∼67% +119%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
3074 Points ∼67% +116%
Beelink SEi11 Pro
Intel Core i5-11320H
2208 Points ∼48% +55%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
2051 Points ∼44% +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
2027 Points ∼44% +43%
Усредн. модель с AMD Ryzen 5 3550H
  (1421 - 1728, n=8)
1596 Points ∼35% +12%
Beelink SER3
AMD Ryzen 7 3750H
1514 Points ∼33% +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1498 Points ∼32% +5%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1494 Points ∼32% +5%
Trigkey S3
AMD Ryzen 5 3550H
1421 Points ∼31%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
828 Points ∼18% -42%
Beelink U59 N5105
Intel Celeron N5105
826 Points ∼18% -42%
Beelink SEi8
Intel Core i3-8109U
772 Points ∼17% -46%
MSI Cubi 5 10M
Intel Core i3-10110U
743 Points ∼16% -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼6% -81%
Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
698 Points ∼100% +96%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
654 Points ∼94% +83%
Beelink GTR6
AMD Ryzen 9 6900HX
631 Points ∼90% +77%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
620 Points ∼89% +74%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
568 Points ∼81% +59%
Beelink SEi11 Pro
Intel Core i5-11320H
561 Points ∼80% +57%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
558 Points ∼80% +56%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
531 Points ∼76% +49%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
415 Points ∼59% +16%
MSI Cubi 5 10M
Intel Core i3-10110U
401 Points ∼57% +12%
BMAX B5 Pro G7H8
Intel Core i5-8260U
400 Points ∼57% +12%
Beelink SER3
AMD Ryzen 7 3750H
377 Points ∼54% +6%
Trigkey S3
AMD Ryzen 5 3550H
357 Points ∼51%
Усредн. модель с AMD Ryzen 5 3550H
  (331 - 370, n=8)
354 Points ∼51% -1%
Beelink SEi8
Intel Core i3-8109U
351 Points ∼50% -2%
Beelink U59 N5105
Intel Celeron N5105
235 Points ∼34% -34%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
234 Points ∼34% -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼13% -74%
Cinebench R23 / Multi Core
Beelink GTR6
AMD Ryzen 9 6900HX
11862 (11361.7min - 11862.4max) Points ∼100% +225%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
11815 Points ∼100% +224%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8342 Points ∼70% +129%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
8128 (7685.59min - 8128.32max) Points ∼69% +123%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
7945 (7877.51min - 7944.53max) Points ∼67% +118%
Beelink SEi11 Pro
Intel Core i5-11320H
5720 (5681.08min - 5720.38max) Points ∼48% +57%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5240 Points ∼44% +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5222 Points ∼44% +43%
Усредн. модель с AMD Ryzen 5 3550H
  (3646 - 4213, n=2)
3930 Points ∼33% +8%
Beelink SER3
AMD Ryzen 7 3750H
3897 (3854.8min - 3897.37max) Points ∼33% +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3867 Points ∼33% +6%
Trigkey S3
AMD Ryzen 5 3550H
3646 (3617.23min - 3645.96max) Points ∼31%
BMAX B5 Pro G7H8
Intel Core i5-8260U
3028 (1303.58min - 3027.81max) Points ∼26% -17%
Beelink U59 N5105
Intel Celeron N5105
2175 (2157.23min - 2174.57max) Points ∼18% -40%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2164 Points ∼18% -41%
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points ∼17% -45%
MSI Cubi 5 10M
Intel Core i3-10110U
1910 Points ∼16% -48%
Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1812 Points ∼100% +97%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1713 Points ∼95% +86%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1610 Points ∼89% +75%
Beelink GTR6
AMD Ryzen 9 6900HX
1608 Points ∼89% +74%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1487 Points ∼82% +61%
Beelink SEi11 Pro
Intel Core i5-11320H
1467 Points ∼81% +59%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
1451 Points ∼80% +57%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1367 Points ∼75% +48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1082 Points ∼60% +17%
MSI Cubi 5 10M
Intel Core i3-10110U
1031 Points ∼57% +12%
Beelink SER3
AMD Ryzen 7 3750H
971 Points ∼54% +5%

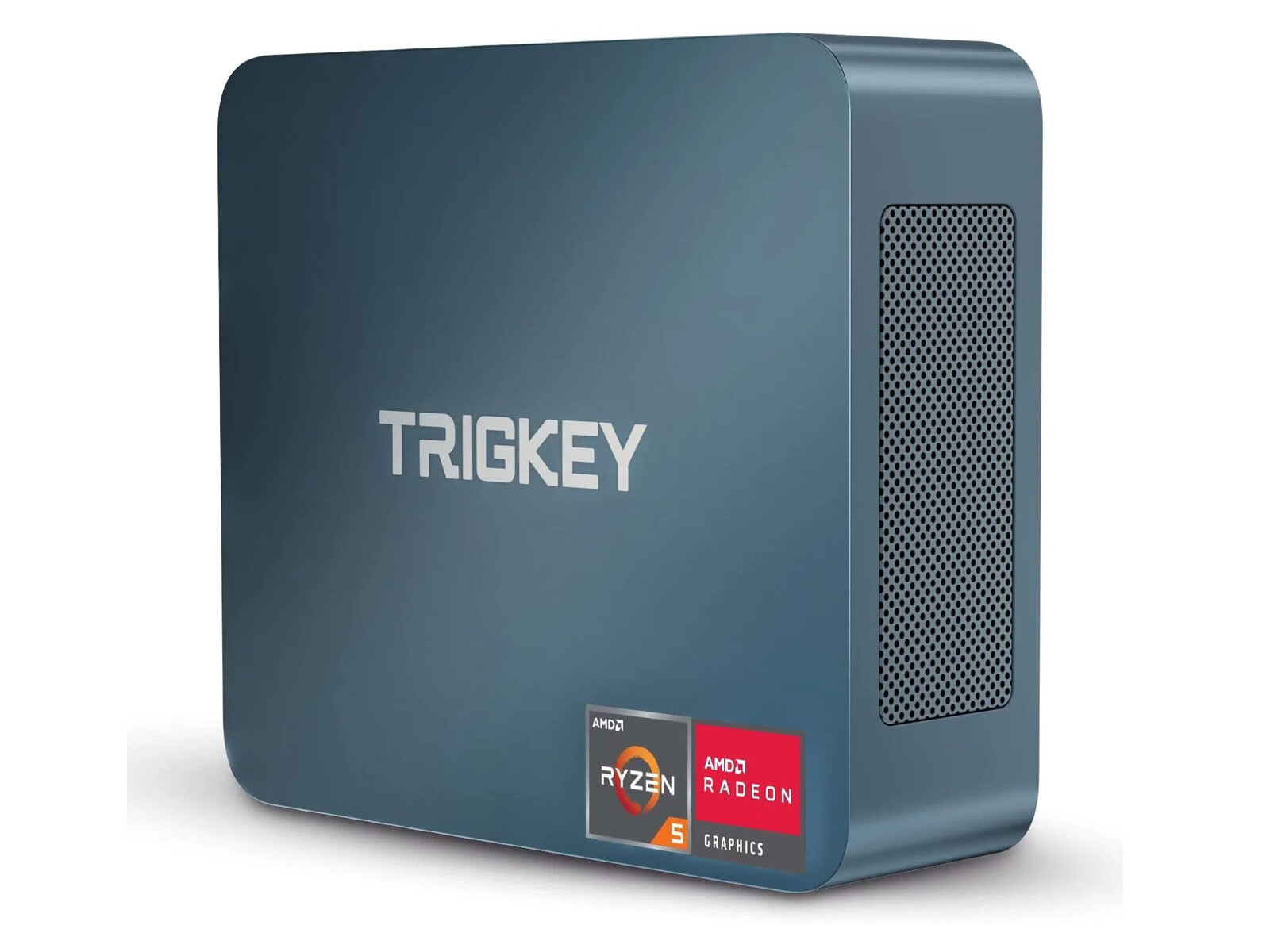

Trigkey S3
AMD Ryzen 5 3550H
922 Points ∼51%
Beelink SEi8
Intel Core i3-8109U
906 Points ∼50% -2%
Усредн. модель с AMD Ryzen 5 3550H
  (850 - 922, n=2)
886 Points ∼49% -4%
BMAX B5 Pro G7H8
Intel Core i5-8260U
629 Points ∼35% -32%
Beelink U59 N5105
Intel Celeron N5105
618 Points ∼34% -33%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
611 Points ∼34% -34%
Cinebench R15 / CPU Multi 64Bit
Beelink GTR6
AMD Ryzen 9 6900HX
1969 (1894.3min - 1968.5max) Points ∼100% +206%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1879 Points ∼95% +192%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1409 (1203.04min - 1409.15max) Points ∼72% +119%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1320 Points ∼67% +105%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1319 (1286.46min - 1319.48max) Points ∼67% +105%
Beelink SEi11 Pro
Intel Core i5-11320H
857 (845.25min - 856.84max) Points ∼44% +33%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
832 Points ∼42% +29%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
791 Points ∼40% +23%
Усредн. модель с AMD Ryzen 5 3550H
  (635 - 769, n=11)
717 Points ∼36% +12%
Beelink SER3
AMD Ryzen 7 3750H
680 (670.93min - 679.66max) Points ∼35% +6%
Trigkey S3
AMD Ryzen 5 3550H
643 (633.41min - 642.56max) Points ∼33%
BMAX B5 Pro G7H8
Intel Core i5-8260U
627 (557.08min - 626.69max) Points ∼32% -2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
623 Points ∼32% -3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
369 Points ∼19% -43%
Beelink U59 N5105
Intel Celeron N5105
368 (359.79min - 368.43max) Points ∼19% -43%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points ∼16% -50%
MSI Cubi 5 10M
Intel Core i3-10110U
316 Points ∼16% -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼6% -81%
Chuwi Hi10 Air
Intel Atom x5-Z8350
97 Points ∼5% -85%
Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
260 Points ∼100% +83%
Beelink GTR6
AMD Ryzen 9 6900HX
260 Points ∼100% +83%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
245 Points ∼94% +73%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
231 Points ∼89% +63%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
221 Points ∼85% +56%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
221 Points ∼85% +56%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
215 Points ∼83% +52%
Beelink SEi11 Pro
Intel Core i5-11320H
214 Points ∼82% +51%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
170 Points ∼65% +20%
MSI Cubi 5 10M
Intel Core i3-10110U
162 Points ∼62% +14%
BMAX B5 Pro G7H8
Intel Core i5-8260U
156.9 Points ∼60% +11%
Beelink SER3
AMD Ryzen 7 3750H
146 Points ∼56% +3%
Trigkey S3
AMD Ryzen 5 3550H
141.8 Points ∼55%
Усредн. модель с AMD Ryzen 5 3550H
  (77 - 146, n=11)
137.9 Points ∼53% -3%
Beelink SEi8
Intel Core i3-8109U
124.3 Points ∼48% -12%
Beelink U59 N5105
Intel Celeron N5105
108.1 Points ∼42% -24%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
106 Points ∼41% -25%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼16% -71%
Chuwi Hi10 Air
Intel Atom x5-Z8350
30 Points ∼12% -79%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * ∼100% -530%
Beelink U59 N5105
Intel Celeron N5105
1573 Seconds * ∼34% -117%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
1550 Seconds * ∼34% -114%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * ∼29% -83%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
759 Seconds * ∼17% -5%
BMAX B5 Pro G7H8
Intel Core i5-8260U
726 Seconds * ∼16% -0%
Trigkey S3
AMD Ryzen 5 3550H
724 Seconds * ∼16%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
694 Seconds * ∼15% +4%
Усредн. модель с AMD Ryzen 5 3550H
  (612 - 759, n=6)
675 Seconds * ∼15% +7%
Beelink SER3
AMD Ryzen 7 3750H
672 Seconds * ∼15% +7%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
590 Seconds * ∼13% +19%
Beelink SEi11 Pro
Intel Core i5-11320H
541 Seconds * ∼12% +25%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
390 Seconds * ∼9% +46%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
384 Seconds * ∼8% +47%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
380 Seconds * ∼8% +48%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
280 Seconds * ∼6% +61%
Beelink GTR6
AMD Ryzen 9 6900HX
257 Seconds * ∼6% +65%
7-Zip 18.03 / 7z b 4
Beelink GTR6
AMD Ryzen 9 6900HX
57261 MIPS ∼100% +230%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
47064 MIPS ∼82% +171%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
39897 MIPS ∼70% +130%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
36343 MIPS ∼63% +109%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
35580 MIPS ∼62% +105%
Beelink SEi11 Pro
Intel Core i5-11320H
24798 MIPS ∼43% +43%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
24006 MIPS ∼42% +38%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
23471 MIPS ∼41% +35%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
20163 MIPS ∼35% +16%
BMAX B5 Pro G7H8
Intel Core i5-8260U
18874 MIPS ∼33% +9%
Усредн. модель с AMD Ryzen 5 3550H
  (16683 - 19409, n=6)
17967 MIPS ∼31% +3%
Trigkey S3
AMD Ryzen 5 3550H
17375 MIPS ∼30%
Beelink SER3
AMD Ryzen 7 3750H
17077 MIPS ∼30% -2%
Beelink U59 N5105
Intel Celeron N5105
11153 MIPS ∼19% -36%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
10994 MIPS ∼19% -37%
Beelink SEi8
Intel Core i3-8109U
9489 MIPS ∼17% -45%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS ∼8% -74%
7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6
AMD Ryzen 9 6900HX
6005 MIPS ∼100% +64%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
5738 MIPS ∼96% +57%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
5400 MIPS ∼90% +48%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
5353 MIPS ∼89% +47%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5255 MIPS ∼88% +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5235 MIPS ∼87% +43%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
5192 MIPS ∼86% +42%
Beelink SEi11 Pro
Intel Core i5-11320H
5105 MIPS ∼85% +40%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4638 MIPS ∼77% +27%
BMAX B5 Pro G7H8
Intel Core i5-8260U
4056 MIPS ∼68% +11%
Beelink SER3
AMD Ryzen 7 3750H
3752 MIPS ∼62% +3%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS ∼62% +3%
Trigkey S3
AMD Ryzen 5 3550H
3652 MIPS ∼61%
Усредн. модель с AMD Ryzen 5 3550H
  (3472 - 3652, n=6)
3554 MIPS ∼59% -3%
Beelink U59 N5105
Intel Celeron N5105
3108 MIPS ∼52% -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
3098 MIPS ∼52% -15%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS ∼24% -60%
Geekbench 5.4 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
9935 Points ∼100% +203%
Beelink GTR6
AMD Ryzen 9 6900HX
9350 Points ∼94% +185%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8772 Points ∼88% +167%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
7804 Points ∼79% +138%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
6103 Points ∼61% +86%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5813 Points ∼59% +77%
Beelink SEi11 Pro
Intel Core i5-11320H
4959 Points ∼50% +51%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4851 Points ∼49% +48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3934 Points ∼40% +20%
Усредн. модель с AMD Ryzen 5 3550H
  (3162 - 3486, n=5)
3316 Points ∼33% +1%
Trigkey S3
AMD Ryzen 5 3550H
3281 Points ∼33%
Beelink U59 N5105
Intel Celeron N5105
2080 Points ∼21% -37%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2020 Points ∼20% -38%
Beelink SEi8
Intel Core i3-8109U
1880 Points ∼19% -43%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1817 Points ∼18% -45%
Geekbench 5.4 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1715 Points ∼100% +89%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1714 Points ∼100% +89%
Beelink GTR6
AMD Ryzen 9 6900HX
1652 Points ∼96% +82%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1633 Points ∼95% +80%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1543 Points ∼90% +70%
Beelink SEi11 Pro
Intel Core i5-11320H
1518 Points ∼89% +67%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
1506 Points ∼88% +66%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1436 Points ∼84% +58%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1219 Points ∼71% +34%
Trigkey S3
AMD Ryzen 5 3550H
907 Points ∼53%
Усредн. модель с AMD Ryzen 5 3550H
  (880 - 907, n=5)
896 Points ∼52% -1%
Beelink SEi8
Intel Core i3-8109U
888 Points ∼52% -2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
657 Points ∼38% -28%
Beelink U59 N5105
Intel Celeron N5105
653 Points ∼38% -28%
BMAX B5 Pro G7H8
Intel Core i5-8260U
639 Points ∼37% -30%
HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR6
AMD Ryzen 9 6900HX
15.4 fps ∼100% +281%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
13.2 fps ∼86% +227%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
10.5 fps ∼68% +160%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
9.7 fps ∼63% +140%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
9.43 fps ∼61% +133%
Beelink SEi11 Pro
Intel Core i5-11320H
7.28 fps ∼47% +80%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
6.55 fps ∼43% +62%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.2 fps ∼34% +29%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4.74 fps ∼31% +17%
Beelink SER3
AMD Ryzen 7 3750H
4.14 fps ∼27% +2%
Усредн. модель с AMD Ryzen 5 3550H
  (3.7 - 4.43, n=5)
4.05 fps ∼26% 0%
Trigkey S3
AMD Ryzen 5 3550H
4.04 fps ∼26%
Beelink SEi8
Intel Core i3-8109U
2.85 fps ∼19% -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2.02 fps ∼13% -50%
Beelink U59 N5105
Intel Celeron N5105
2.01 fps ∼13% -50%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1.8 fps ∼12% -55%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps ∼6% -76%
LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8
Intel Core i5-8260U
107.9 s * ∼100% -23%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
103.2 s * ∼96% -18%
Beelink U59 N5105
Intel Celeron N5105
101 s * ∼94% -15%
Trigkey S3
AMD Ryzen 5 3550H
87.8 s * ∼81%
Beelink SER3
AMD Ryzen 7 3750H
86.5 s * ∼80% +1%
Усредн. модель с AMD Ryzen 5 3550H
  (73.3 - 92.7, n=4)
82.2 s * ∼76% +6%
Beelink SEi8
Intel Core i3-8109U
79 s * ∼73% +10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
68.2 s * ∼63% +22%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
52.2 s * ∼48% +41%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
51.8 s * ∼48% +41%
Beelink SEi11 Pro
Intel Core i5-11320H
49.1 s * ∼46% +44%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
48.9 s * ∼45% +44%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
48.7 s * ∼45% +45%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
46.1 s * ∼43% +47%
Beelink GTR6
AMD Ryzen 9 6900HX
46 s * ∼43% +48%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
45 s * ∼42% +49%
R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8
Intel Core i5-8260U
1.257 sec * ∼100% -72%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
1.166 sec * ∼93% -59%
Beelink U59 N5105
Intel Celeron N5105
1.162 sec * ∼92% -59%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * ∼68% -18%
Усредн. модель с AMD Ryzen 5 3550H
  (0.732 - 0.752, n=4)
0.739 sec * ∼59% -1%
Trigkey S3
AMD Ryzen 5 3550H
0.732 sec * ∼58%
Beelink SER3
AMD Ryzen 7 3750H
0.723 sec * ∼58% +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.7 sec * ∼56% +4%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
0.609 sec * ∼48% +17%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
0.599 sec * ∼48% +18%
Beelink SEi11 Pro
Intel Core i5-11320H
0.581 sec * ∼46% +21%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
0.53 sec * ∼42% +28%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
0.512 sec * ∼41% +30%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
0.4856 sec * ∼39% +34%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
0.4787 sec * ∼38% +35%
Beelink GTR6
AMD Ryzen 9 6900HX
0.4627 sec * ∼37% +37%
CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... меньше = лучше

Blender
v3.3 Classroom HIP/AMD
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
926 Seconds * ∼100%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)

926 Seconds * ∼100% -0%
v3.3 Classroom CPU
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
1297 Seconds * ∼100%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)

1297 Seconds * ∼100% -0%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
995 Seconds * ∼77% +23%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
707 Seconds * ∼55% +45%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
697 Seconds * ∼54% +46%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
666 Seconds * ∼51% +49%

* ... меньше = лучше

Cinebench R15 CPU Multi 64Bit
643 Points
Cinebench R15 OpenGL 64Bit
60.7 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
141.8 Points
?
Performance Rating
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
92.6 pt ∼93%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
76.7 pt ∼77%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
74.9 pt ∼75%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
69.6 pt ∼70%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
64.6 pt ∼65%
Усредн. модель с AMD Ryzen 5 3550H

44.2 pt ∼44%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
41.1 pt ∼41%
AIDA64 / FP32 Ray-Trace
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
9181 KRay/s ∼100% +206%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
7047 KRay/s ∼77% +135%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
6915 KRay/s ∼75% +131%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
6784 KRay/s ∼74% +126%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼73% +124%
Усредн. модель с AMD Ryzen 5 3550H
  (2996 - 3607, n=5)
3309 KRay/s ∼36% +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
2996 KRay/s ∼33%
AIDA64 / FPU Julia
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
58039 Points ∼100% +255%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
37275 Points ∼64% +128%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
34444 Points ∼59% +111%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
29972 Points ∼52% +84%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼48% +71%
Усредн. модель с AMD Ryzen 5 3550H
  (16278 - 18781, n=5)
17574 Points ∼30% +8%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
16331 Points ∼28%
AIDA64 / CPU SHA3
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
2006 MB/s ∼100% +137%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
1992 MB/s ∼99% +135%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
1911 MB/s ∼95% +126%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
1884 MB/s ∼94% +122%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼92% +119%
Усредн. модель с AMD Ryzen 5 3550H
  (847 - 983, n=4)
933 MB/s ∼47% +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
847 MB/s ∼42%
AIDA64 / CPU Queen
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
66699 Points ∼100% +57%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
65340 Points ∼98% +54%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
59756 Points ∼90% +41%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
48212 Points ∼72% +14%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼70% +10%
Усредн. модель с AMD Ryzen 5 3550H
  (42017 - 48622, n=5)
45217 Points ∼68% +6%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
42470 Points ∼64%
AIDA64 / FPU SinJulia
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
8340 Points ∼100% +55%
Усредн. модель с AMD Ryzen 5 3550H
  (5386 - 6316, n=5)
5909 Points ∼71% +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
5386 Points ∼65%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
4779 Points ∼57% -11%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
4771 Points ∼57% -11%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
4644 Points ∼56% -14%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼53% -17%
AIDA64 / FPU Mandel
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
31962 Points ∼100% +276%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
17999 Points ∼56% +111%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
17987 Points ∼56% +111%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼53% +99%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
16394 Points ∼51% +93%
Усредн. модель с AMD Ryzen 5 3550H
  (8460 - 9767, n=5)
9148 Points ∼29% +7%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
8511 Points ∼27%
AIDA64 / CPU AES
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
79183 MB/s ∼100% +185%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
68683 MB/s ∼87% +147%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
67140 MB/s ∼85% +142%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼84% +140%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
38221 MB/s ∼48% +38%
Усредн. модель с AMD Ryzen 5 3550H
  (27486 - 32316, n=5)
29977 MB/s ∼38% +8%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
27755 MB/s ∼35%
AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
633 MB/s ∼100% +110%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
577 MB/s ∼91% +91%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
507 MB/s ∼80% +68%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼59% +24%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
368 MB/s ∼58% +22%
Усредн. модель с AMD Ryzen 5 3550H
  (299 - 352, n=5)
323 MB/s ∼51% +7%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
302 MB/s ∼48%
AIDA64 / FP64 Ray-Trace
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
4811 KRay/s ∼100% +204%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
3926 KRay/s ∼82% +148%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
3811 KRay/s ∼79% +141%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼75% +129%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
3532 KRay/s ∼73% +123%
Усредн. модель с AMD Ryzen 5 3550H
  (1584 - 1914, n=5)
1753 KRay/s ∼36% +11%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
1584 KRay/s ∼33%
AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
44210 MPixel/s ∼100% +164%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
29523 MPixel/s ∼67% +76%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
25964 MPixel/s ∼59% +55%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
20237 MPixel/s ∼46% +21%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼38% +1%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
16736 MPixel/s ∼38%
Усредн. модель с AMD Ryzen 5 3550H
  (14325 - 17838, n=5)
16132 MPixel/s ∼36% -4%

Общесистемная производительность

Баллы в тестах PCMark оказываются, примерно, посерёдке между совсем дешёвыми неттопами с Atom или Celeron, и предложениями средней ценовой категории с Intel Core поколений 11 и 12.

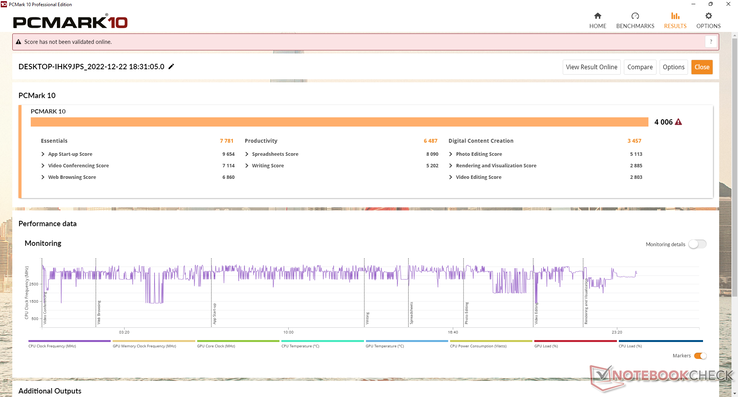

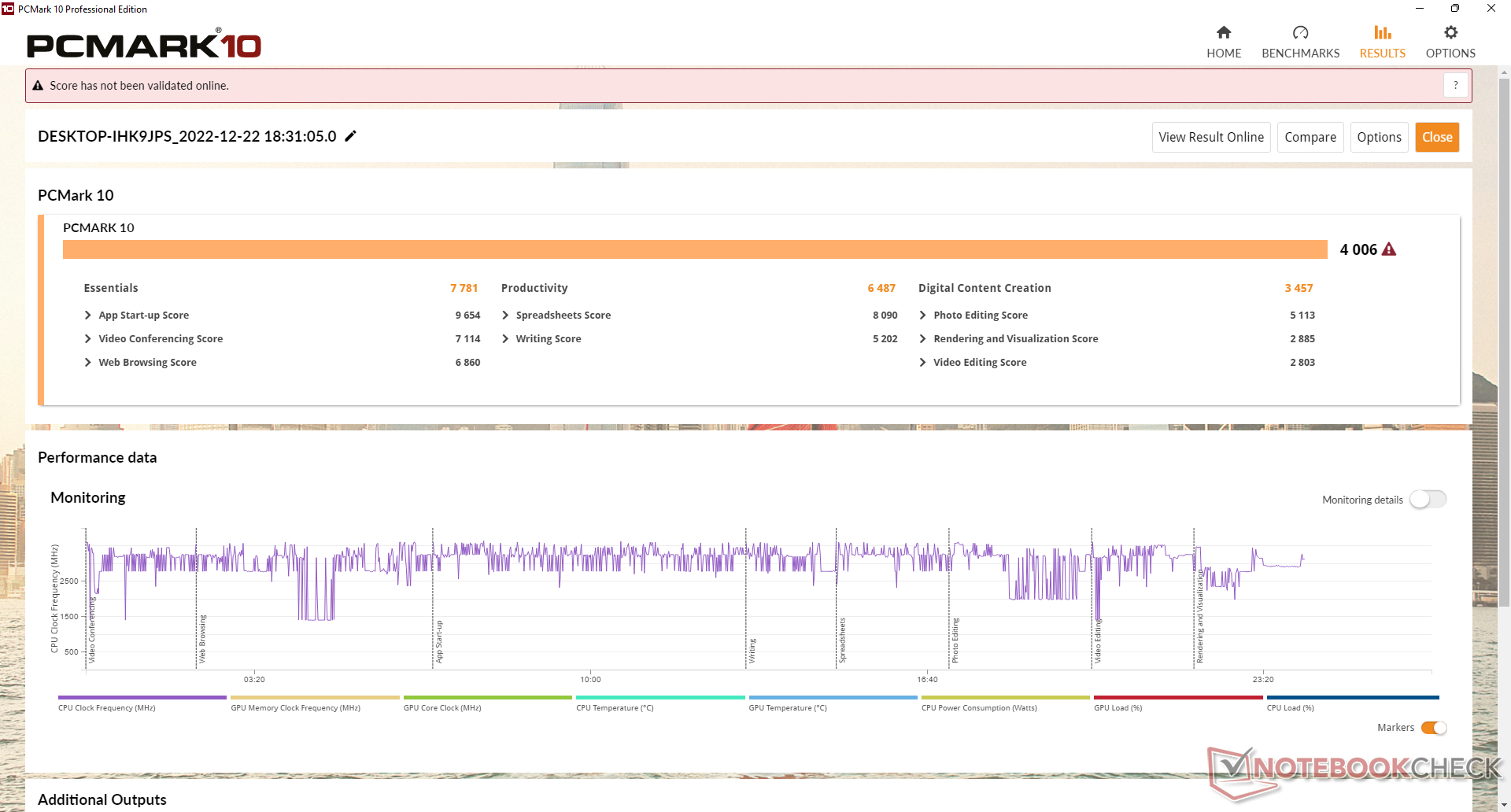

PCMark 10 / Score
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5902 Points ∼100% +47%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5543 Points ∼94% +38%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
5510 Points ∼93% +38%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5095 Points ∼86% +27%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼76% +13%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (4006 - 4307, n=4)
4153 Points ∼70% +4%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
4006 Points ∼68%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2670 Points ∼45% -33%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1144 Points ∼19% -71%
PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
10845 Points ∼100% +39%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
10351 Points ∼95% +33%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
10281 Points ∼95% +32%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
10186 Points ∼94% +31%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼83% +16%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (7781 - 8579, n=4)
8202 Points ∼76% +5%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
7781 Points ∼72%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
6340 Points ∼58% -19%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
2891 Points ∼27% -63%
PCMark 10 / Productivity
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
9293 Points ∼100% +43%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
7354 Points ∼79% +13%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
7041 Points ∼76% +9%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
6915 Points ∼74% +7%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
6487 Points ∼70%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (5995 - 6487, n=4)
6327 Points ∼68% -2%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼67% -5%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
3758 Points ∼40% -42%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1407 Points ∼15% -78%
PCMark 10 / Digital Content Creation
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
6330 Points ∼100% +83%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5801 Points ∼92% +68%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5798 Points ∼92% +68%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5048 Points ∼80% +46%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼71% +29%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (3457 - 3947, n=4)
3751 Points ∼59% +9%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
3457 Points ∼55%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2170 Points ∼34% -37%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1001 Points ∼16% -71%
CrossMark / Overall
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1644 Points ∼100% +98%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1559 Points ∼95% +87%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1335 Points ∼81% +60%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1311 Points ∼80% +58%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
832 Points ∼51%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

832 Points ∼51% 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
531 Points ∼32% -36%
CrossMark / Productivity
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1676 Points ∼100% +88%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1528 Points ∼91% +72%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1419 Points ∼85% +59%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1355 Points ∼81% +52%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
890 Points ∼53%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

890 Points ∼53% 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
590 Points ∼35% -34%
CrossMark / Creativity
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1679 Points ∼100% +116%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1546 Points ∼92% +99%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1315 Points ∼78% +69%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1256 Points ∼75% +62%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
777 Points ∼46%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

777 Points ∼46% 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
471 Points ∼28% -39%
CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1867 Points ∼100% +123%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1336 Points ∼72% +60%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1327 Points ∼71% +59%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1177 Points ∼63% +41%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
836 Points ∼45%
Усредн. модель с AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

836 Points ∼45% 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
554 Points ∼30% -34%
PCMark 10 Score
4006 баллов
?
AIDA64 / Memory Copy
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
69882 MB/s ∼100% +117%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
43215 MB/s ∼62% +34%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42001 MB/s ∼60% +30%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
41106 MB/s ∼59% +28%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
32188 MB/s ∼46%
Усредн. модель с AMD Ryzen 5 3550H
  (28887 - 32188, n=5)
30294 MB/s ∼43% -6%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼33% -29%
AIDA64 / Memory Read
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
65177 MB/s ∼100% +85%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
47363 MB/s ∼73% +35%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46616 MB/s ∼72% +33%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46516 MB/s ∼71% +32%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
35172 MB/s ∼54%
Усредн. модель с AMD Ryzen 5 3550H
  (31862 - 35172, n=5)
33574 MB/s ∼52% -5%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼38% -29%
AIDA64 / Memory Write
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
63385 MB/s ∼100% +77%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46760 MB/s ∼74% +30%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46475 MB/s ∼73% +30%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42347 MB/s ∼67% +18%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
35845 MB/s ∼57%
Усредн. модель с AMD Ryzen 5 3550H
  (32493 - 35847, n=5)
34148 MB/s ∼54% -5%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼37% -35%
AIDA64 / Memory Latency
Усредн. модель с AMD Ryzen 5 3550H
  (95 - 120, n=5)
113.8 ns * ∼100% -20%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
100 ns * ∼88% -5%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
95 ns * ∼83%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
91.6 ns * ∼80% +4%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼77% +8%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
81 ns * ∼71% +15%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
80.3 ns * ∼71% +15%

* ... меньше = лучше

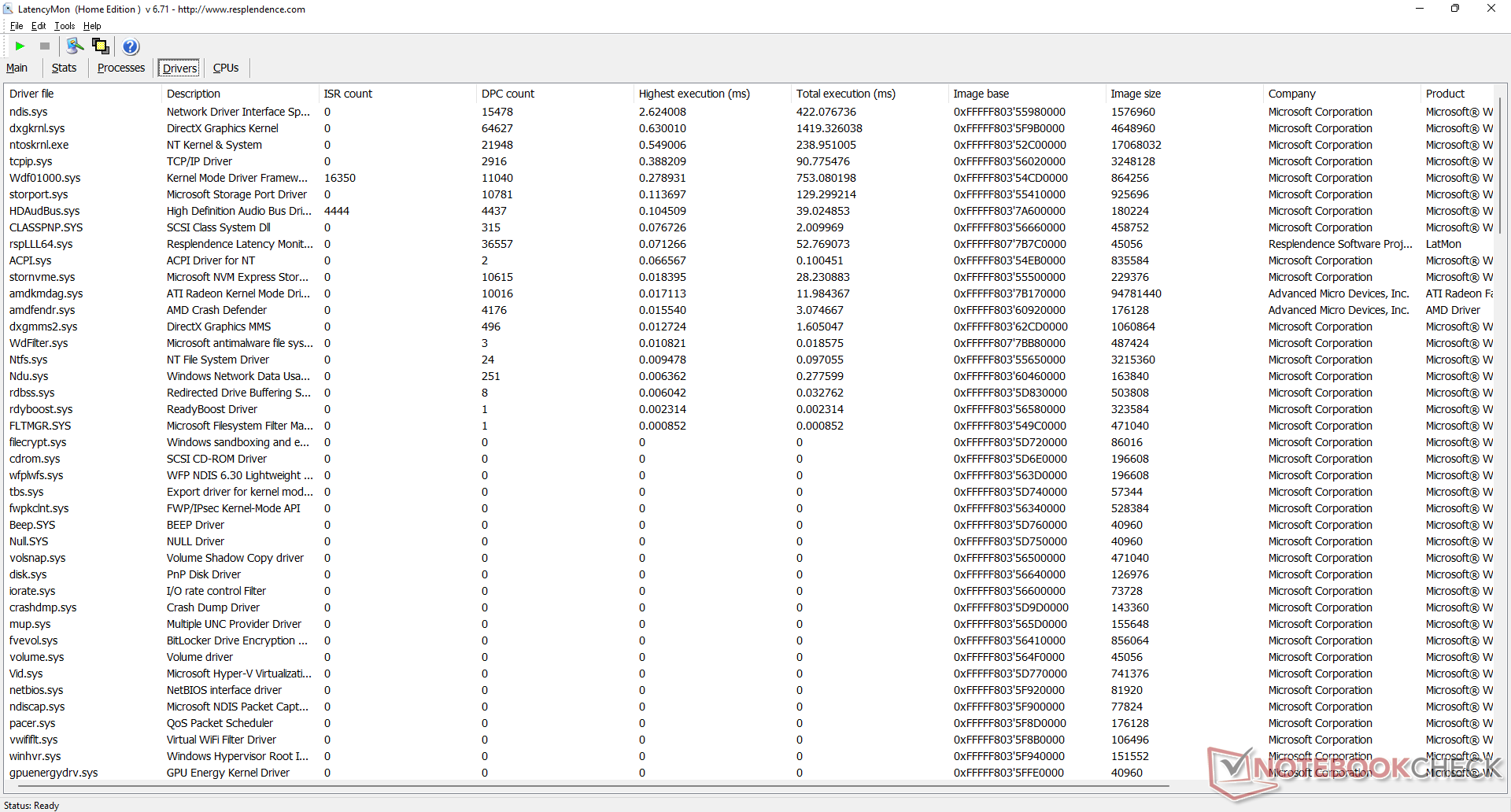

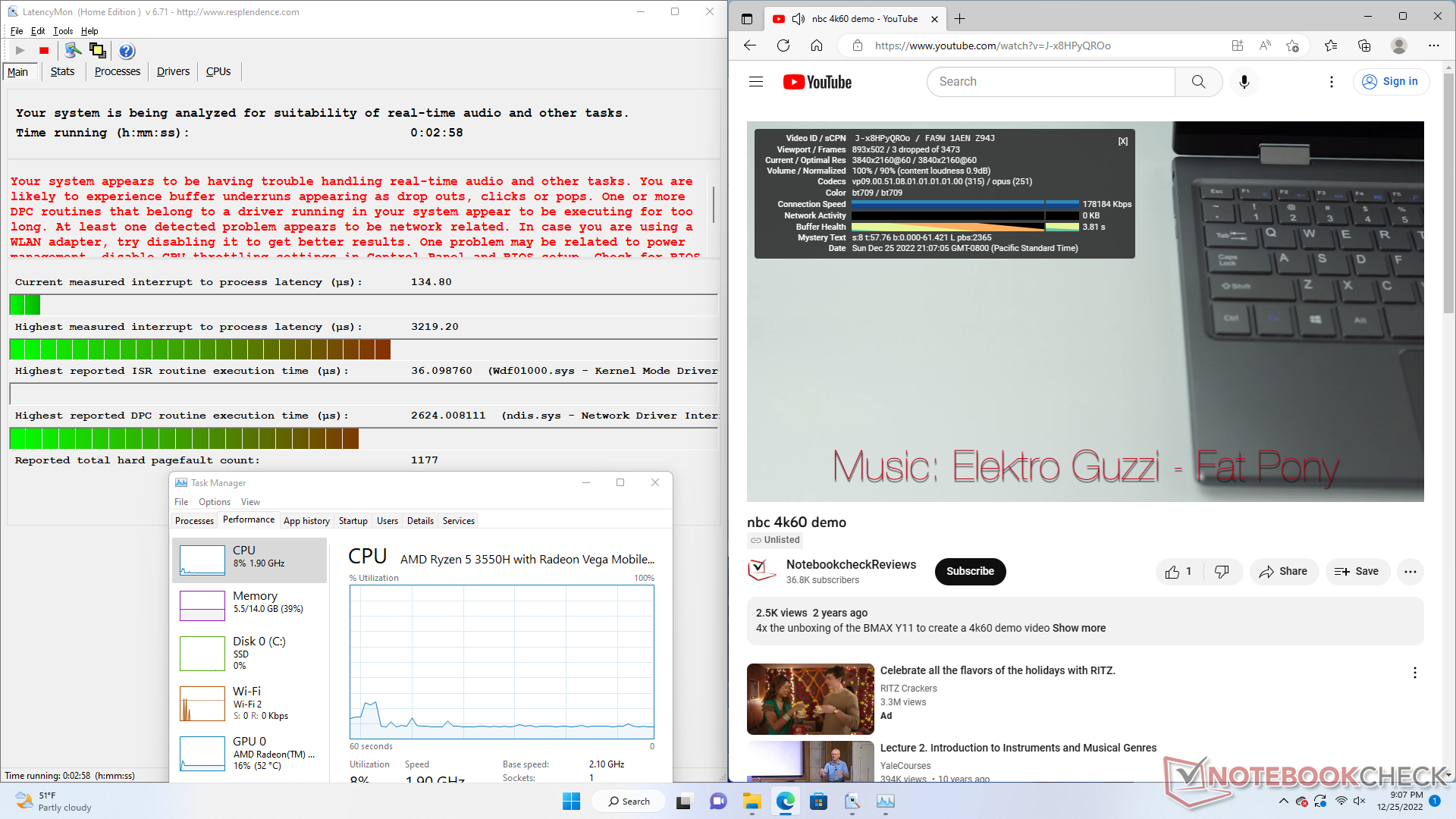

Задержки DPC

LatencyMon рассказывает о значительных задержках при открытии нескольких вкладок со страницами Notebookcheck. Воспроизведение нашего обычного тестового YouTube-видео 2160p60 длиной в минуту прошло хорошо, лишь с 3 выпавшими кадрами.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
3219.2 μs * ∼100%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1151 μs * ∼36% +64%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
830.3 μs * ∼26% +74%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
562 μs * ∼17% +83%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼16% +84%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
167.2 μs * ∼5% +95%

* ... меньше = лучше

Хранение данных

Накопитель Kingston NV1 SNVS/500GCN (M.2 NVMe, 22 на 80) нам уже знаком. Он встречается во многих мини-компьютерах торговой марки Beelink, скажем, SEi11 Pro и SER Pro. Этот недорогой накопитель на четырёх линиях PCI-Express 3 даёт скорости чтения не более 2.5 ГБ/с. Внутри корпуса есть ещё площадка под 2.5-дюймовый накопитель, если, конечно, получится открутить неблагонадёжные винтики.

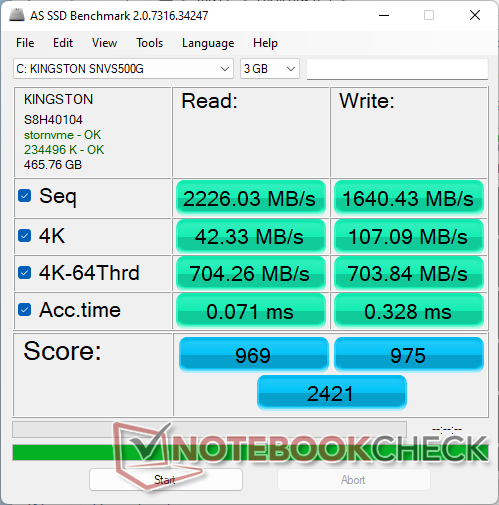

AS SSD
AS SSD

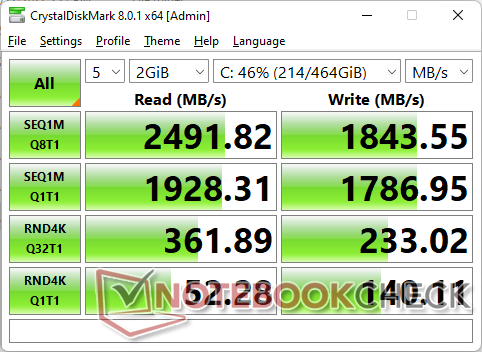

CDM 8
CDM 8
Kingston NV1 SNVS/500GCN
CDM 5/6 Read Seq Q32T1: 2517 MB/s
CDM 5/6 Write Seq Q32T1: 1837 MB/s
CDM 5/6 Read 4K Q32T1: 364 MB/s
CDM 5/6 Write 4K Q32T1: 232.6 MB/s
CDM 5 Read Seq: 1963 MB/s
CDM 5 Write Seq: 1784 MB/s
CDM 5/6 Read 4K: 51.91 MB/s
CDM 5/6 Write 4K: 138.1 MB/s
Drive Performance Rating - Percent
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
92.8 pt ∼93%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
70.5 pt ∼71%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
55.7 pt ∼56%
Beelink SER Pro Ryzen 5 5600H -11!
Kingston NV1 SNVS/500GCN
55.1 pt ∼55%
Trigkey S3
Kingston NV1 SNVS/500GCN
52.2 pt ∼52%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
17.7 pt ∼18%
DiskSpd
seq read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2512 (2493.51min - 2511.76max) MB/s ∼100% +31%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2228 (1938.09min - 2228.38max) MB/s ∼89% +16%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1976 (1950.06min - 1975.69max) MB/s ∼79% +3%
Trigkey S3
Kingston NV1 SNVS/500GCN
1924 (1916.02min - 1924max) MB/s ∼77%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1638 (1628.34min - 1637.59max) MB/s ∼65% -15%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼20% -74%
seq write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2848 (2821.72min - 2847.93max) MB/s ∼100% +62%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2198 (2143.62min - 2198.23max) MB/s ∼77% +25%
Trigkey S3
Kingston NV1 SNVS/500GCN
1758 (745.14min - 1757.99max) MB/s ∼62%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1746 (580.39min - 1746.23max) MB/s ∼61% -1%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1661 (336.85min - 1661.33max) MB/s ∼58% -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼16% -73%
seq q8 t1 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3632 (3373.44min - 3632.06max) MB/s ∼100% +44%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
3497 (2944.82min - 3496.65max) MB/s ∼96% +39%
Trigkey S3
Kingston NV1 SNVS/500GCN
2518 (2250.15min - 2517.63max) MB/s ∼69%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
2456 (2261.06min - 2456.06max) MB/s ∼68% -2%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2374 (2218.75min - 2374.19max) MB/s ∼65% -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s ∼15% -78%
seq q8 t1 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2841 (2828.64min - 2841.01max) MB/s ∼100% +57%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2573 (2547.29min - 2572.88max) MB/s ∼91% +42%
Trigkey S3
Kingston NV1 SNVS/500GCN
1809 (1103.1min - 1809.06max) MB/s ∼64%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1763 (714.42min - 1763.25max) MB/s ∼62% -3%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1433 (67.32min - 1432.98max) MB/s ∼50% -21%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s ∼18% -72%
4k q1 t1 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
79.3 (78.06min - 79.29max) MB/s ∼100% +79%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
50.5 (48.13min - 50.48max) MB/s ∼64% +14%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
44.7 (43.85min - 44.67max) MB/s ∼56% +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
44.4 (42.57min - 44.42max) MB/s ∼56%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
44.3 (43.84min - 44.26max) MB/s ∼56% 0%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s ∼27% -51%
4k q1 t1 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
391 (374.32min - 390.86max) MB/s ∼100% +189%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
173.6 (113.3min - 173.62max) MB/s ∼44% +28%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
147.9 (117.82min - 147.87max) MB/s ∼38% +9%
Trigkey S3
Kingston NV1 SNVS/500GCN
135.1 (104.83min - 135.1max) MB/s ∼35%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
127.3 (125.68min - 127.3max) MB/s ∼33% -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s ∼12% -66%
4k q32 t16 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1942 (1940.61min - 1941.63max) MB/s ∼100% +161%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
747 (745.51min - 747.02max) MB/s ∼38% 0%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
745 (742.2min - 744.53max) MB/s ∼38% 0%
Trigkey S3
Kingston NV1 SNVS/500GCN
745 (742.5min - 744.62max) MB/s ∼38%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
643 (632.31min - 643.46max) MB/s ∼33% -14%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s ∼15% -62%
4k q32 t16 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2219 (2197.25min - 2218.83max) MB/s ∼100% +180%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
860 (472.56min - 860.33max) MB/s ∼39% +8%
Trigkey S3
Kingston NV1 SNVS/500GCN
793 (785.74min - 792.64max) MB/s ∼36%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
733 (332min - 733.18max) MB/s ∼33% -8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s ∼15% -58%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
328 (314.14min - 327.95max) MB/s ∼15% -59%
AS SSD
Score Total
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
4619 Points ∼100% +91%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
3536 Points ∼77% +46%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2742 Points ∼59% +13%
Trigkey S3
Kingston NV1 SNVS/500GCN
2421 Points ∼52%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points ∼18% -65%
Score Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1633 Points ∼100% +69%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1042 Points ∼64% +8%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
975 Points ∼60% +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
969 Points ∼59%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points ∼19% -69%
Score Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2278 Points ∼100% +134%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1997 Points ∼88% +105%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1282 Points ∼56% +31%
Trigkey S3
Kingston NV1 SNVS/500GCN
975 Points ∼43%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points ∼16% -62%
Seq Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3206.84 MB/s ∼100% +44%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2881 MB/s ∼90% +29%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2246.84 MB/s ∼70% +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
2226.03 MB/s ∼69%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s ∼16% -76%
Seq Write
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1960 MB/s ∼100% +19%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1764.26 MB/s ∼90% +8%
Trigkey S3
Kingston NV1 SNVS/500GCN
1640.43 MB/s ∼84%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s ∼24% -71%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
463.76 MB/s ∼24% -72%
4K Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
59.54 MB/s ∼100% +41%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
45.38 MB/s ∼76% +7%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
44.12 MB/s ∼74% +4%
Trigkey S3
Kingston NV1 SNVS/500GCN
42.33 MB/s ∼71%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s ∼34% -52%
4K Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
280.94 MB/s ∼100% +162%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
192.62 MB/s ∼69% +80%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
182.89 MB/s ∼65% +71%
Trigkey S3
Kingston NV1 SNVS/500GCN
107.09 MB/s ∼38%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s ∼15% -60%
4K-64 Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1252.33 MB/s ∼100% +78%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
708.14 MB/s ∼57% +1%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
706.35 MB/s ∼56% 0%
Trigkey S3
Kingston NV1 SNVS/500GCN
704.26 MB/s ∼56%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s ∼18% -67%
4K-64 Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1950.21 MB/s ∼100% +177%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1617.56 MB/s ∼83% +130%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
912.72 MB/s ∼47% +30%
Trigkey S3
Kingston NV1 SNVS/500GCN
703.84 MB/s ∼36%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s ∼15% -59%
Access Time Read
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * ∼100% -75%
Trigkey S3
Kingston NV1 SNVS/500GCN
0.071 ms * ∼57%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.053 ms * ∼43% +25%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
0.053 ms * ∼43% +25%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.049 ms * ∼40% +31%
Access Time Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.342 ms * ∼100% -4%
Trigkey S3
Kingston NV1 SNVS/500GCN
0.328 ms * ∼96%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * ∼79% +18%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.07 ms * ∼20% +79%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
0.022 ms * ∼6% +93%

* ... меньше = лучше

Нагрузочный тест SSD длительным чтением: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Trigkey S3: Ø2442 (2098.62-2474.72)

Графика

Графический процессор серии Vega, встроенный в местный Ryzen 5, где-то в два раза опережает по скорости UHD Graphics 620 из множества процессоров Intel Core класса U (седьмого, восьмого, девятого, десятого поколений). Возможностей что того, что этого видеопроцессора будет маловато для современных игр, но для взаимодействия с мониторами большого разрешения и для аппаратного декодирования видео пригодится каждый дополнительный процент скорости.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra

3DMark Performance Rating - Percent
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
100 pt ∼100%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
64 pt ∼64%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
62.3 pt ∼62%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
61.2 pt ∼61%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
60.4 pt ∼60%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
59.3 pt ∼59%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
56 pt ∼56%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
52.6 pt ∼53%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
50.4 pt ∼50%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
36.8 pt ∼37%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)

31.6 pt ∼32%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
28.9 pt ∼29%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
18.6 pt ∼19%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
16.1 pt ∼16%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
15.3 pt ∼15%
Geekom MiniAir 11 Special Edition -1!
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
9.4 pt ∼9%
Chuwi LapBook Plus -1!
Intel HD Graphics 505, Intel Atom x7-E3950
7.3 pt ∼7%
Chuwi Hi10 Air -3!
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
2.6 pt ∼3%
3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
44579 Points ∼100% +137%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
31437 Points ∼71% +67%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
26093 Points ∼59% +39%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
25485 Points ∼57% +36%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
22735 Points ∼51% +21%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
22363 Points ∼50% +19%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
21602 Points ∼48% +15%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
21276 Points ∼48% +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
21114 Points ∼47% +12%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
18788 Points ∼42%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (7309 - 19399, n=37)
15327 Points ∼34% -18%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
13791 Points ∼31% -27%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
9921 Points ∼22% -47%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
8388 Points ∼19% -55%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
8164 Points ∼18% -57%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4958 Points ∼11% -74%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points ∼9% -79%
1920x1080 Fire Strike Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
6962 Points ∼100% +166%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4959 Points ∼71% +90%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
4902 Points ∼70% +87%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4883 Points ∼70% +87%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
4523 Points ∼65% +73%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4360 Points ∼63% +67%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
4249 Points ∼61% +62%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
4037 Points ∼58% +54%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
3939 Points ∼57% +51%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
2616 Points ∼38%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (1095 - 2901, n=41)
2224 Points ∼32% -15%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
2027 Points ∼29% -23%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
1288 Points ∼19% -51%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1106 Points ∼16% -58%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1078 Points ∼15% -59%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
637 Points ∼9% -76%
2560x1440 Time Spy Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2437 Points ∼100% +257%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1630 Points ∼67% +139%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1570 Points ∼64% +130%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
1556 Points ∼64% +128%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1443 Points ∼59% +112%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1287 Points ∼53% +89%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points ∼51% +83%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
1234 Points ∼51% +81%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
1147 Points ∼47% +68%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
682 Points ∼28%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (523 - 790, n=23)
673 Points ∼28% -1%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
609 Points ∼25% -11%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
422 Points ∼17% -38%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
365 Points ∼15% -46%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
312 Points ∼13% -54%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points ∼6% -79%
3DMark 11 - 1280x720 Performance GPU
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
10566 Points ∼100% +152%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6840 Points ∼65% +63%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6676 Points ∼63% +59%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
6571 Points ∼62% +57%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
6210 Points ∼59% +48%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6091 Points ∼58% +45%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points ∼58% +45%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
5378 Points ∼51% +28%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
5054 Points ∼48% +21%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
4191 Points ∼40%
Усредн. модель с AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (1668 - 4317, n=44)
3447 Points ∼33% -18%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
3245 Points ∼31% -23%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
1744 Points ∼17% -58%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1660 Points ∼16% -60%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1458 Points ∼14% -65%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points ∼8% -80%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points ∼7% -82%
Chuwi Hi10 Air
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
278 Points ∼3% -93%
3DMark 11 Performance
4348 баллов
3DMark Cloud Gate Standard Score
